Caldwell Luc surgery

Introduction:



Caldwell Luc surgery is approximately 120 years old. This surgery till recently was an

important tool in the armamentarium of an Otolaryngologist. Now the indications for this

procedure is getting fewer and fewer with Endoscopic sinus surgery becoming common.

The fundamental concept of this surgical approach is to replace the diseased / scarred

mucosa from maxillary sinus with a new one. This is easily said than done. It is fairly simple

to remove diseased mucosa. New mucosa replacement is dependent on the regenerative

capacity of the patient.



This approach can also be used to access adjacent areas, which could be difficult to access

otherwise. This procedure is not without its own set of complications. It is imperative on

the part of the surgeon to weigh in the benefits vs complications before advising the

patient.



Description of paranasal sinuses have been traced up to the 16th century. Berenger Del

Carpi an anatomist first described the existence of paranasal sinuses and also infections

involving this area. Detailed description of maxillary sinusitis was first provided by Nathaniel

Highmore. Maxillary sinuses hence bear the name “Antrum of Highmore”. He first

attempted to drain the infected sinus cavity by inserting a silver needle (bodkin) through an

empty tooth socket. By doing this he was able to enter into the maxillary sinus cavity and

was able to drain infected pus from it. Many surgeons used this approach to drain maxillary

sinuses. It was Lamorier in 1743 and Desault in 1798 who successfully demonstrated that

maxillary sinus cavity could be approached via the canine fossa route. According to them

this was the weakest portion of all its boundaries.



In 1835 John Hunter popularized intranasal antrostomy via the inferior meatus. George W

Caldwell of New York combined both canine fossa approach and inferior meatal antrostomy

with success in managing patients with maxillary sinusitis. This work became a sensational

publication in 1893 (New York Medical Journal). A similar procedure was routinely

performed in France by Henry Luc in 1897. Only difference between their two procedures

was that Luc performed intranasal antrostomy via the middle meatus while Caldwell

performed inferior meatal antrostomy via the inferior meatus.



Better understanding of mucociliary clearance mechanism has popularized conservative

surgical procedures like:

Fess

Mini Fess

Balloon sinuplasty

It should be stressed that Caldwell Luc procedure provides the maximum exposure of

maxillary sinuses, floor of orbit and pterygopalatine fossa.



Indications:



1. Mycotic maxillary sinusitis

2. Multiseptate maxillary sinus mucocele

3. A/C polyp (Recurrent)

4. Oroantral fistula

5. Revision procedures

6. Access for transantral sphenoidectomy, orbital decompression, orbital floor repair,

exploration of pterygoplatine fossa

7. Excision of tumors involving the antrum (inverted papilloma)

8. Visualization of orbital floor during orbital floor decompression surgeries

9. Removal of foreign bodies from maxillary antrum

In patients with severe mucociliary irreversible damage (Kartagener’s syndrome, Young’s

syndrome) this could be the only approach to drain infected material from maxillary sinuses.



Procedure:



This surgery can be performed either under LA/GA.









Image showing canine fossa marked in a skull





The maxillary sinus is lined by ciliated columnar epithelium. The cilia beats towards the

natural ostium thereby moving the secretions towards the natural ostium. Hence inferior

meatal antrostomy does not ensure drainage of the sinus in the presence of normal ciliary

beat.

The adult maxillary sinus is about:

25-35 mm wide

36-45 mm high

38-45 mm long

Its average volume is about 15 ml /(one fluid ounce).



Superior wall of maxillary sinus – orbital floor. This sometimes can be dehiscent. The

infraorbital nerve is on the roof of the sinus. Medially and posteriorly the roof is composed

of the floor of the ethmoid sinuses.



Anterior wall of maxillary sinus – This wall contains the nerves and vessels that supply the

upper teeth. This wall is thinner anteriorly and it thickens posterolaterally where it joins the

zygomatic process. Septae are present anteriorly in about a third of the cases.

Medial wall – This wall separates maxillary sinus from nasal cavity. The inferior turbinate is

attached along the nasal wall below the level of maxillary sinus ostium. The nasolacrimal

duct traverses the thicker bone at the junction of medial and anterior walls and it opens into

the nose below the inferior turbinate in the middle meatus. Maxillary sinus communicates

with the nasal cavity via the maxillary sinus ostium in the hiatus semilunaris of the middle

meatus.



Posterior wall – This is formed by the infratemporal surface of the maxilla and it separates

the sinus from the pterygomaxillary fissure and the pterygopalatine fossa. Pterygopalatine

fossa contains the internal maxillary artery and its branches, pterygopalatine ganglion and

its branches.

The dimensions of maxillary sinus cavity changes with age and could affect the surgery as

the anatomy gets changed with age. The sinus expands at the rate of 2-3 mm / year and this

process continues till adulthood. At birth maxillary sinus is rather small and its floor lies 4

mm above the floor of the nasal cavity. At the age of 9 the floor of the maxillary sinuses is

at the same level as that of the nasal cavity. Their dimensions being 2x2x3 cms. In adults

the sinus floor is 0.5 – 1 cm below that of the nasal cavity. The alveolus of maxilla atrophies

in edentulous patients and the floor in these patients could be still lower.



Anatomy of the canine fossa:



The canine fossa is the thinnest portion of the anterior wall of the maxillary sinus. Hence it is

easy to breach this area and enter into the sinus. Boundaries of the canine fossa include:

1. Canine eminence formed by the canine tooth – medial

2. Root of the zygoma – laterally

3. Alveolar process of maxilla - inferiorly

4. Infraorbital foramen with the infraorbital nerve superiorly



Infraorbital foramen:



This foramen transmits infraorbital nerve, artery and vein. The infraorbital neurovascular

bundle traverses a groove in the orbital floor which happens to be the roof of maxillary

sinus. This area can also be dehiscent in some individuals. The neurovascular bundle exits

via the infraorbital foramen which is located approximately 5 mm below the midportion of

the inferior orbital rim to enter the soft tissues of the cheek. Branches of this nerve supply

the lower eyelid, nose, cheek, and upper lip. Care should be taken while elevating the

periosteum from the anterior wall of maxillary sinus to avoid injury to this nerve. Branches

of anterior and posterior superior alveolar nerves traverse through the bone to supply

upper teeth and gums. There is risk of injury to these nerves when antrostomy is extended

too low. Injury to these nerves could cause loss of sensation of upper dentition and gums.









Infraorbital nerve and its branches







Anatomy of canine fossa along with its boundaries





It should be pointed out that no significant blood vessels are encountered during this

surgical procedure with the exception of small infraorbital vessels that exit from the

infraorbital foramen. Significant bleeding is possible only when one breaches the posterior

wall of the maxilla and enters the pterygopalatine fossa where internal maxillary artery can

be encountered.



Patient preparation:



Patient should be placed in recumbent position with head slightly elevated. Nasal cavities

are packed with cotton pledgets dipped in 4% xylocaine with 1 in 100,000 adrenaline. These

pledgets should be squeezed dry before insertion. This is because the critical toxic dose of

xylocaine in this concentration is about 7 ml. On no account this amount should be

exceeded.

Under direct illumination pledgets are placed in Inferior meatus, floor of the nasal cavity and

in the middle meatus area. At least 10 – 15 minutes interval should be given for the drug to

take its effect.

If the surgery is planned under local anesthesia then one more cotton pledget soaked in 4%

xylocaine adrenaline mixture and is placed in the sublabial area on the side of surgery. This

is done to anesthetize the mucosa over canine fossa.

Infiltration local anesthesia is preferred in this scenario. About 1 ml of 2% xylocaine mixed

with 1 in 200,000 adrenaline is infiltrated over the canine fossa area. Since the mucosa over

the canine fossa would have already been anesthetized by the cotton pledget soaked in 4%

xylocaine the process of infiltration would invariably be painless. This infiltration blocks the

inferior orbital nerve and its branch anterior superior alveolar nerve. The patient is also

mildly sedated to alleviate the anxiety.

If general anesthesia is preferred then the patient should be positioned only after the

anesthetist has intubated the patient.



Incision:



Incision is given in the Bucco gingival sulcus. The length of the incision could be about 3 - 4

cms. Ideally the incision is begun at the canine eminence and should run laterally.

Langenbachs retractor is used to retract the mucosal and soft tissue to expose the anterior

wall of the maxilla.







Image showing sub labial incision being given



The retractor should be applied in such a way that it should not cause excessive traction to the soft tissue in the area. Excessive traction if applied can lead to excessive cheek oedema post operatively which could take about a week to subside completely.







Image showing Langenbeck retractor being applied



In the next step a periosteal elevator is used to elevate the periosteum from the anterior wall of maxillary sinus till the infraorbital foramen becomes visible. Care should be taken not to damage infraorbital neurovascular bundle.







Periosteal elevator seen being used to elevate periosteum from the anterior wall of maxilla



Anterior wall of maxillary sinus antrum is opened up using a gouge and hammer or by cutting it using a cutting burr. The size of the antrostomy should be 1.5 – 2 cm in diameter and more or less circular. Instruments can be introduced via the antrostomy and the diseased mucosa can be curetted out under direct vision. The entire maxillary sinus cavity is directly visible through the antrostomy opening. Of course, there could be some blind spots which may not be fully visible i.e. the anterior wall and the antero lateral portion of the sinus cavity. A wide angled nasal endoscope can be introduced via the antrostomy opening to visualize even these hidden areas. If the pterygopalatine fossa needs to be approached then the posterior wall of the maxillary sinus antrum should be breached using gouge and hammer or a cutting burr.



Creation of naso antral window in the inferior meatus:

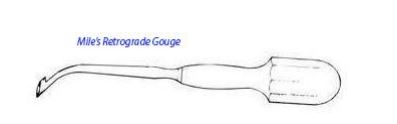

This process helps in removal of antral pack after surgical procedure. Visualization of antral cavity is possible through this opening. Miles retrograde gouge is used for this purpose. This gouge has a unique curvature which will enable it to slide into the inferior meatus.











The gouge is held in the dominant hand with index finger serving as a guard to control the perforation process. The gouge is slipping into the inferior meatus. As soon as it hinges in the lateral nasal wall the medial wall of antrum is perforated at the junction of anterior third and posterior 2/3 of inferior meatus. Its unique tip ensures that it holds the bone fragment after perforation is made on withdrawal. Medicated nasal pack can be introduced via the inferior meatal antrostomy using long-curved forceps and delivered into the maxillary antrum via inferior meatal antrostomy. One end of the ribbon gauze used to pack the antrum is brought out via the inferior meatal antrostomy making their later removal via the nasal cavity that much easier. Mucosal wound is closed using 3-0 chromic catgut. The antral pack can be removed via the nasal cavity after 48 hours as it is accessible through the inferior meatal antrostomy.





Image showing canine fossa antrostomy





Antral mucosa visible through antrostomy







Wound closure seen

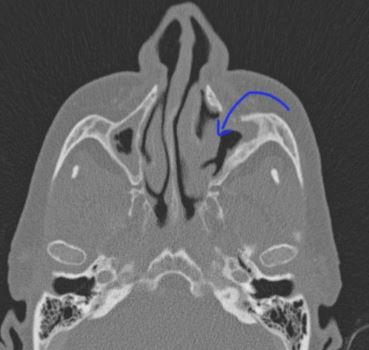

Arrow showing Caldwell Luc surgery opening in the canine fossa



Post-operative care:



1. Ice packs can be used over cheek to reduce oedema and discomfort

2. Nasal and antral packing can be removed between 24-48 hours

3. Nose blowing is avoided as it could cause emphysema of cheek area

4. If patient uses denture then it should not be worn for at least a week to facilitate mucosal healing



Complications:



1. Oedema over cheek – This can happen if retraction of soft tissue in the area was firm and not gentle. Sometimes subcutaneous emphysema can develop due to leakage of air from the antrum into the subcutaneous tissues of cheek. This complication is self-limiting and will reduce within a week.

2. Injury to infra orbital nerve causing anesthesia of upper teeth and lateral wall of nose. It can even cause pain and numbness over the face

3. Injury to nasolacrimal duct while performing inferior meatal antrostomy

4. Devitalization of teeth due to injury to its root
